CPU Support
Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list
Memory Support
Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB (Line-out at rear) 113 dB SNR recording input
Audio Feature :
– SupremeFX Shielding™ Technology
– Optical S/PDIF out port(s) at back panel
– LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Sonic Radar III
– Sonic Studio III + Sonic Studio Link
Expansion Slots
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max at x4 mode) *1
1 x PCIe 3.0 x1
Storage
Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *

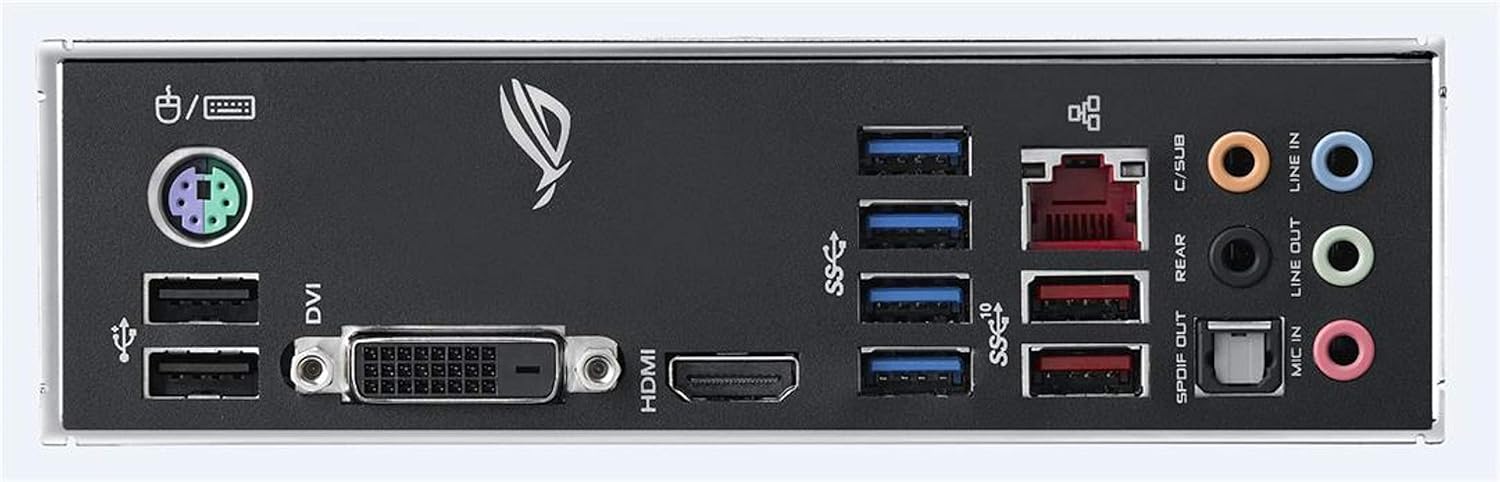

Back Panel Connectors
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Anti-surge LAN (RJ45) port
ROG STRIX B365-G GAMING ราคา
Advice 3,290 บาท สั่งซื้อ
JIB 3,290 บาท สั่งซื้อ
***ราคาอาจจะมีการเปลี่ยนแปลง***
