CPU Support
Intel® Socket 2066 Core™ X-Series Processors
Optimized for Intel® Core™ X-Series 10000 Processor Family
Supports Intel® Virtual RAID on CPU (VROC)
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Max Technology 3.0
* Refer to www.asus.com for CPU support list
* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.
Memory Support
(Intel® Core™ i9 10000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– SupremeFX Shielding Technology
– ESS®SABRE9018Q2C DAC/AMP
– Supports up to 32-Bit/192kHz playback *6
Audio Feature :
– DTS® Sound Unbound
– Optical S/PDIF out port(s) at back panel
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
– Sonic Radar III
– Sonic Studio III + Sonic Studio Virtual Mixer
Expansion Slots
48-Lane CPU-
(Intel® Core™ i9 10000 X-Series CPU)
3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1
44-Lane CPU-
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2
28-Lane CPU-
(Intel® Core™ i7 7000 X-Series CPU)
3 x PCIe 3.0 x16 (x16/x8/x4 mode)
Intel® X299 Chipset
1 x PCIe 3.0 x4 *3
Storage
Intel® Core™ X-Series Processors Family :
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
Intel® Rapid Storage Technology Enterprise supports
Intel® X299 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

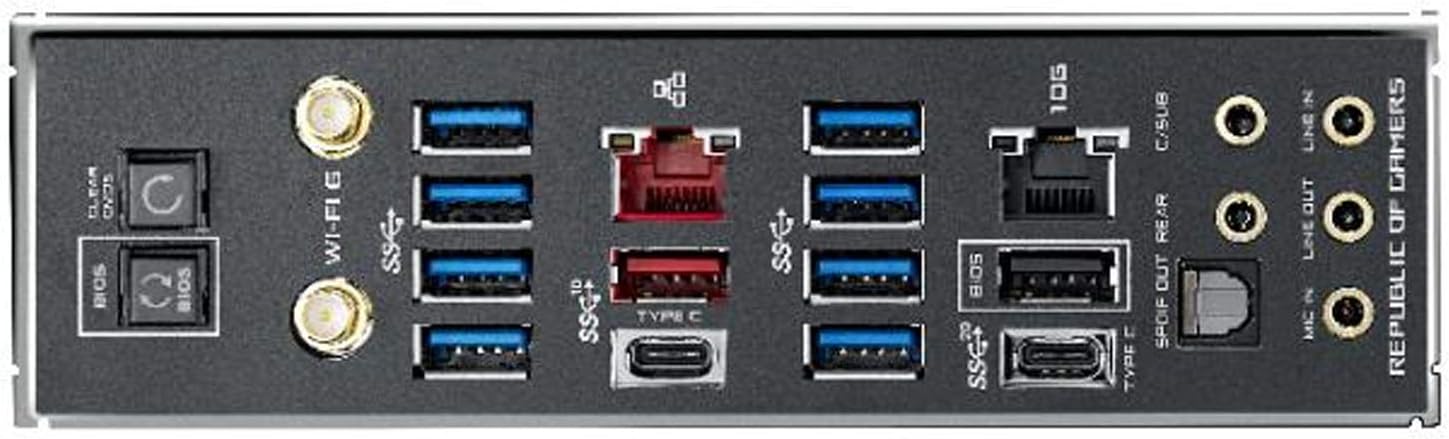

Back Panel Connectors
1 x USB 3.2 Gen 2×2 (up to 20Gbps) ports (Type-C)
1 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
5 x LED-illuminated audio jacks
8 x USB 3.2 Gen 1 (up to 5Gbps) ports
2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
1 x Aquantia AQC-107 10G LAN port
Anti-surge LAN (RJ45) port
ROG Rampage VI Extreme Encore ราคา
JIB 24,400 บาท สั่งซื้อ
***ราคาอาจจะมีการเปลี่ยนแปลง***
