ขายเมนบอร์ด ROG MAXIMUS XII APEX ราคา



CPU Support

Build in Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memory Support

Intel® 10th Gen Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2133 MHz Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Double Capcity DRAM support depends on the DRAM models



Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
– Impedance sense for front and rear headphone outputs
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback
Audio Feature :
– SupremeFX Shielding™ Technology
– Optical S/PDIF out port(s) at back panel
Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity



Expansion Slots

Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
Intel® Z490 Chipset
1 x PCIe 3.0 x4
1 x PCIe 3.0 x1

Storage

Intel® Z490 Chipset :
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s)*3
Support Raid 0, 1, 5
ASMedia® SATA 6Gb/s controller :
2 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready

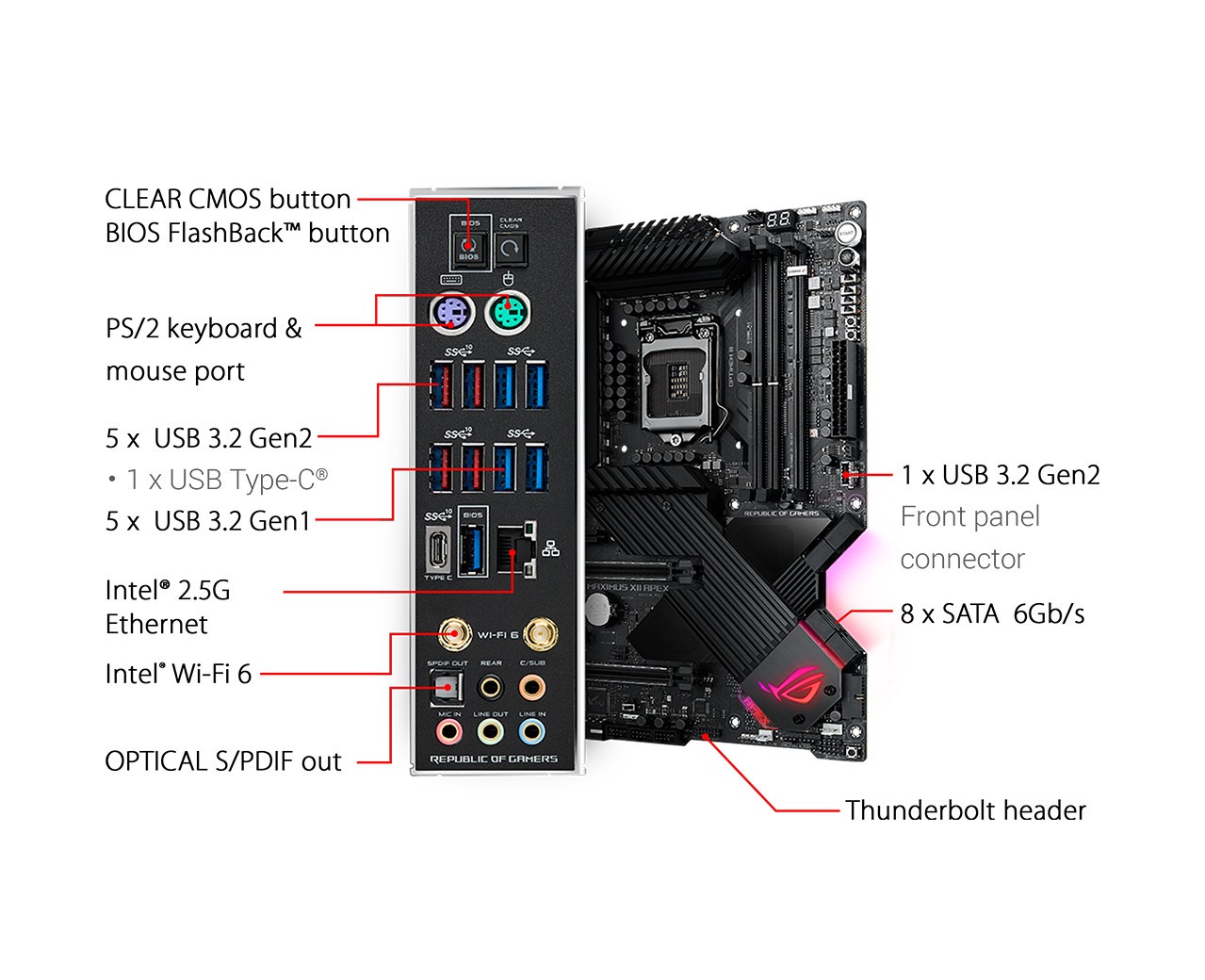

Back Panel Connectors

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 2 (red)
1 x USB 3.2 Gen 2 (black)Type-C,
5 x USB 3.2 Gen 1 (blue)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0
5 x Gold-plated audio jacks



ROG MAXIMUS XII APEX ราคา

BananaIT 16,580 บาท สั่งซื้อ

JIB 16,800 บาท สั่งซื้อ

***ราคาอาจจะมีการเปลี่ยนแปลง***
