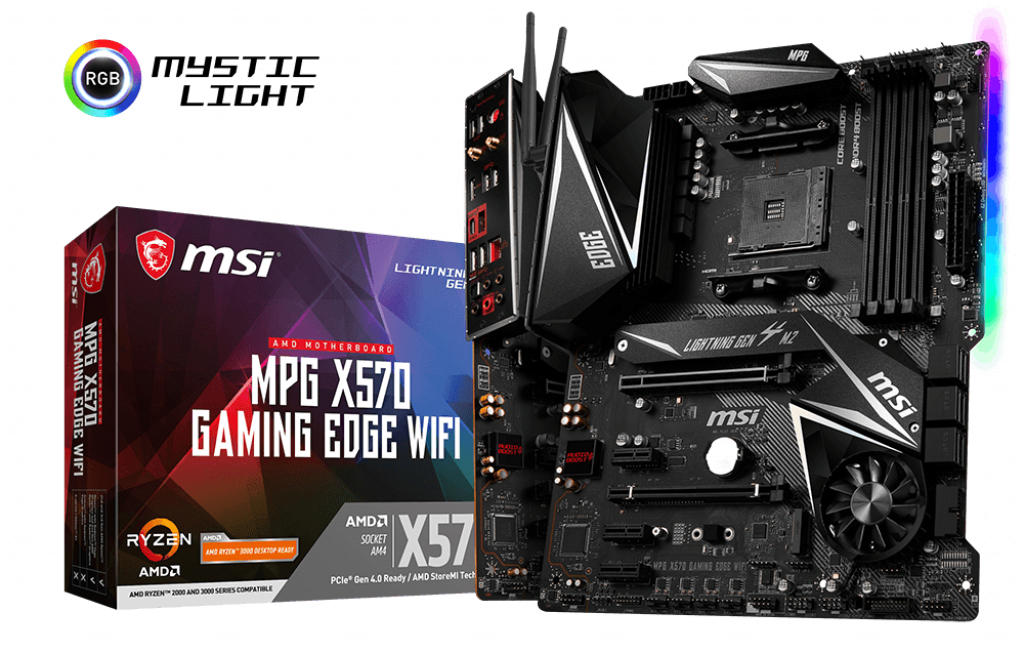

ขายเมนบอร์ด MPG X570 GAMING EDGE WIFI ราคา



CPU Support

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4



Memory Support

• 4x DDR4 memory slots, support up to 128GB
  • s3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
  • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

Audio

Realtek^® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output



Expansion Slots

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
  • 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
  • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
• 3x PCIe 3.0 x1 slots¹

1. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
2. The speeds may vary for different devices

Storage

AMD^® X570 Chipset

• 4x SATA 6Gb/s ports(SATA3-SATA6)
• 2x M.2 slots (Key M)
  • M2_1 slot (from AMD^® Processor)
    – Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    – Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    – Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD^® X570 Chipset)
    – Supports PCIe 3.0 x4 and SATA 6Gb/s
    – Supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061

• 2x SATA 6Gb/s ports (SATA1, SATA2)

Back Panel Connectors

1 x Keyboard / Mouse
2 x Wireless / Bluetooth
4 x USB 3.2 Gen1 Type-A
1 x LAN
5 x Audio Connectors
1 x Flash BIOS Button
2 x USB 2.0
1 x HDMI
2 x USB 3.2 Gen2 Type-A + C
1 x Optical S/PDIF out



MPG X570 GAMING EDGE WIFI ราคา

BananaIT 6,590 บาท สั่งซื้อ

JIB 7,290 บาท สั่งซื้อ

***ราคาอาจจะมีการเปลี่ยนแปลง***
