CPU Support
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list
Memory Support
AMD Ryzen™ 2nd Generation Processors
4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– SupremeFX Shielding Technology
– Supports up to 32-Bit/192kHz playback *3
Audio Feature :
– Optical S/PDIF out port(s) at back panel
– Sonic Radar III
– Sonic Studio III + Sonic Studio Link
Expansion Slots
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X470 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (max at x4 mode)
Storage
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X470 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2
6 x SATA 6Gb/s port(s),
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
Support Raid 0, 1, 10

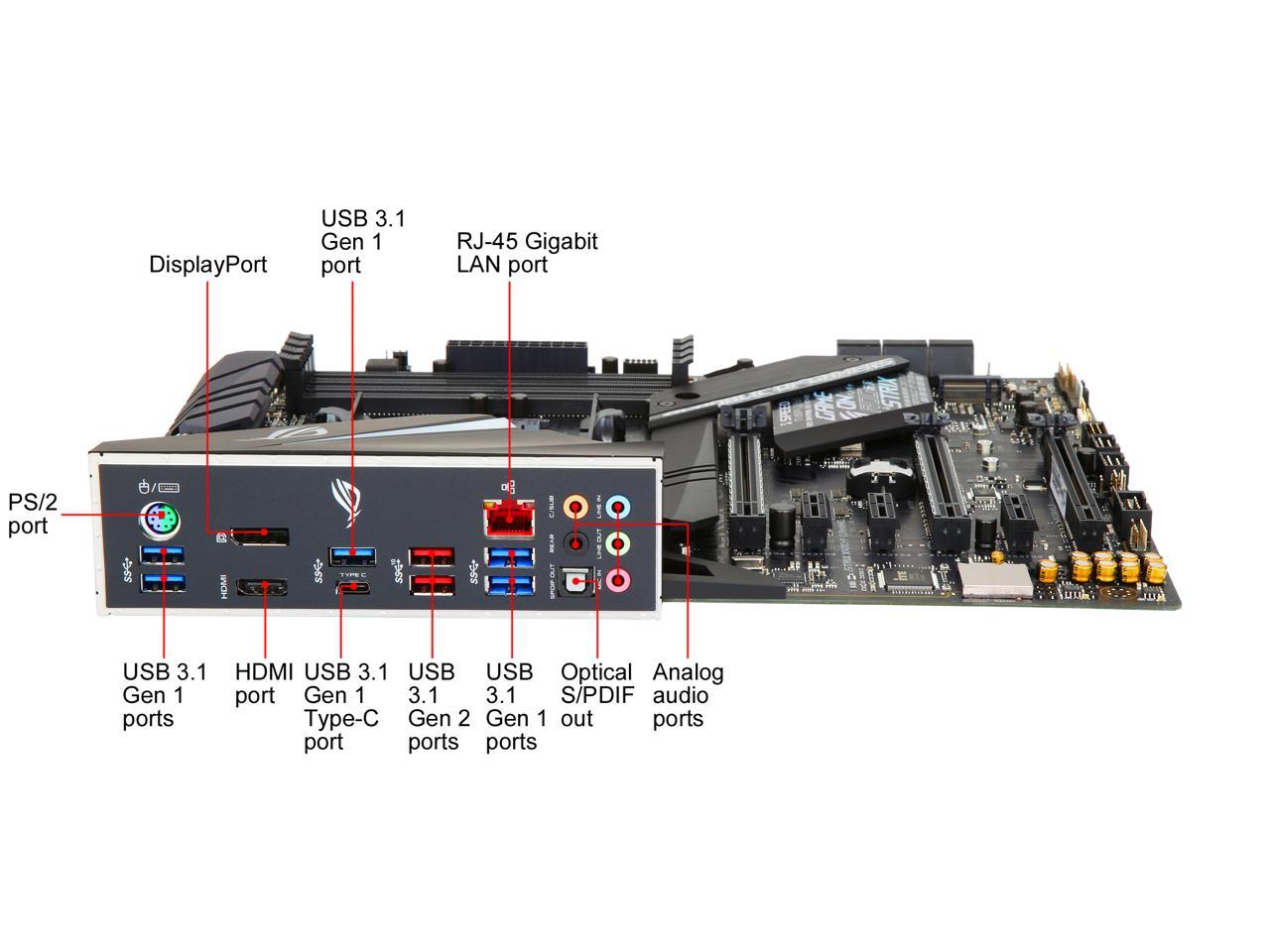

Back Panel Connectors
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
5 x USB 3.1 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
2 x USB 3.1 Gen 2 (red)Type-A
1 x USB 3.1 (black)USB Type-CTM
Anti-surge LAN (RJ45) port
ROG STRIX Z490-F GAMING ราคา
JIB 5,490 บาท สั่งซื้อ
***ราคาอาจจะมีการเปลี่ยนแปลง***
