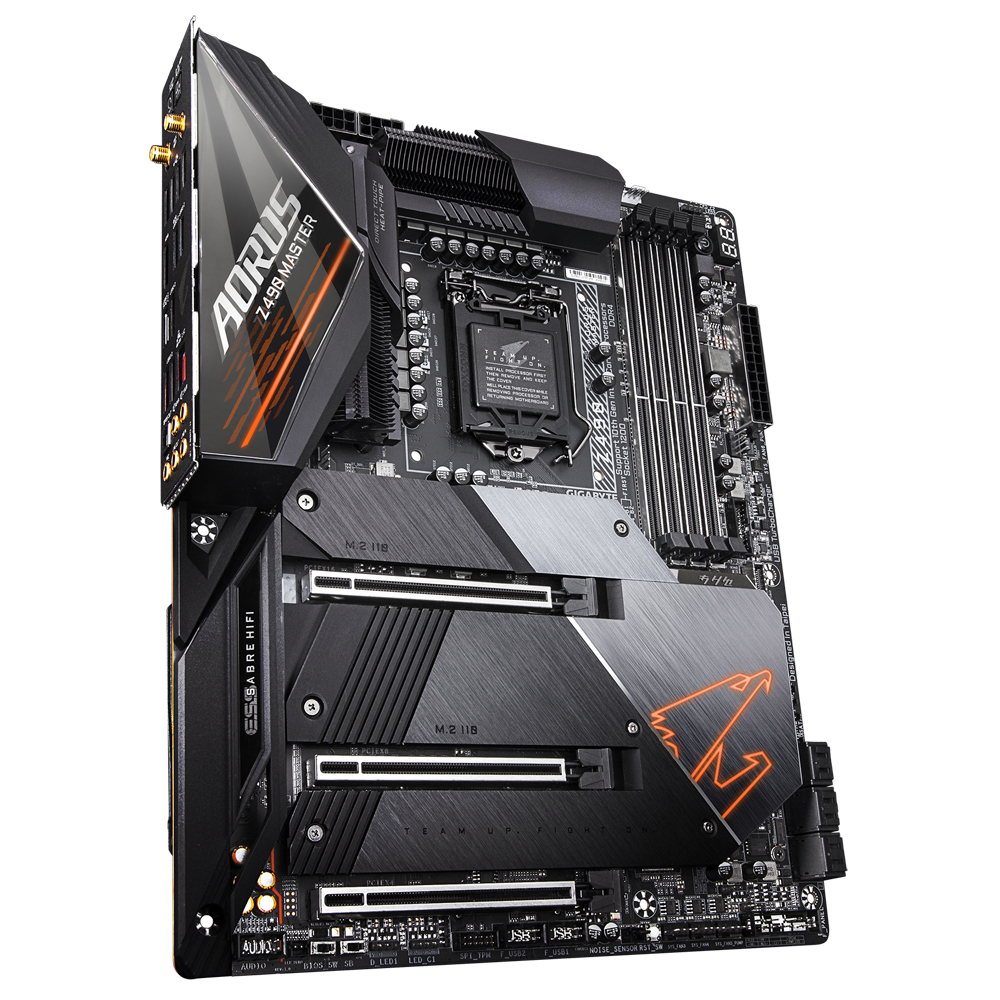

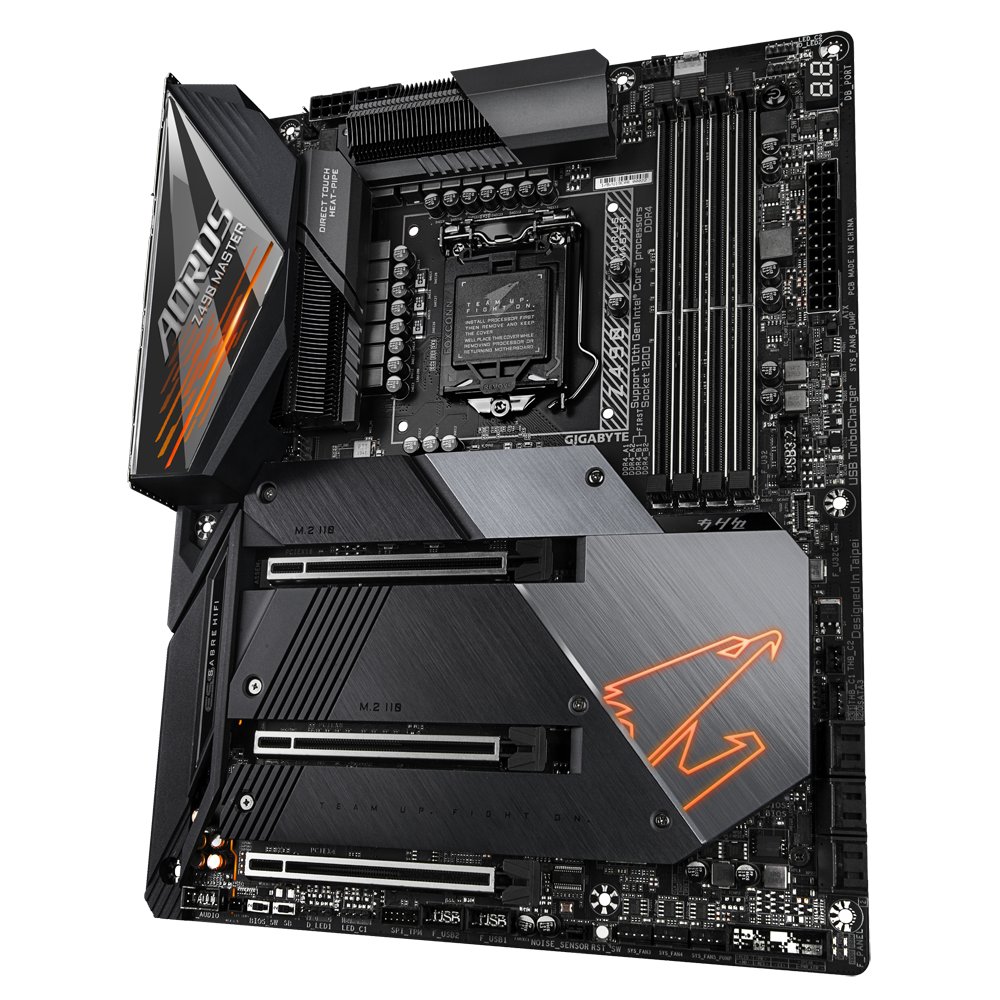

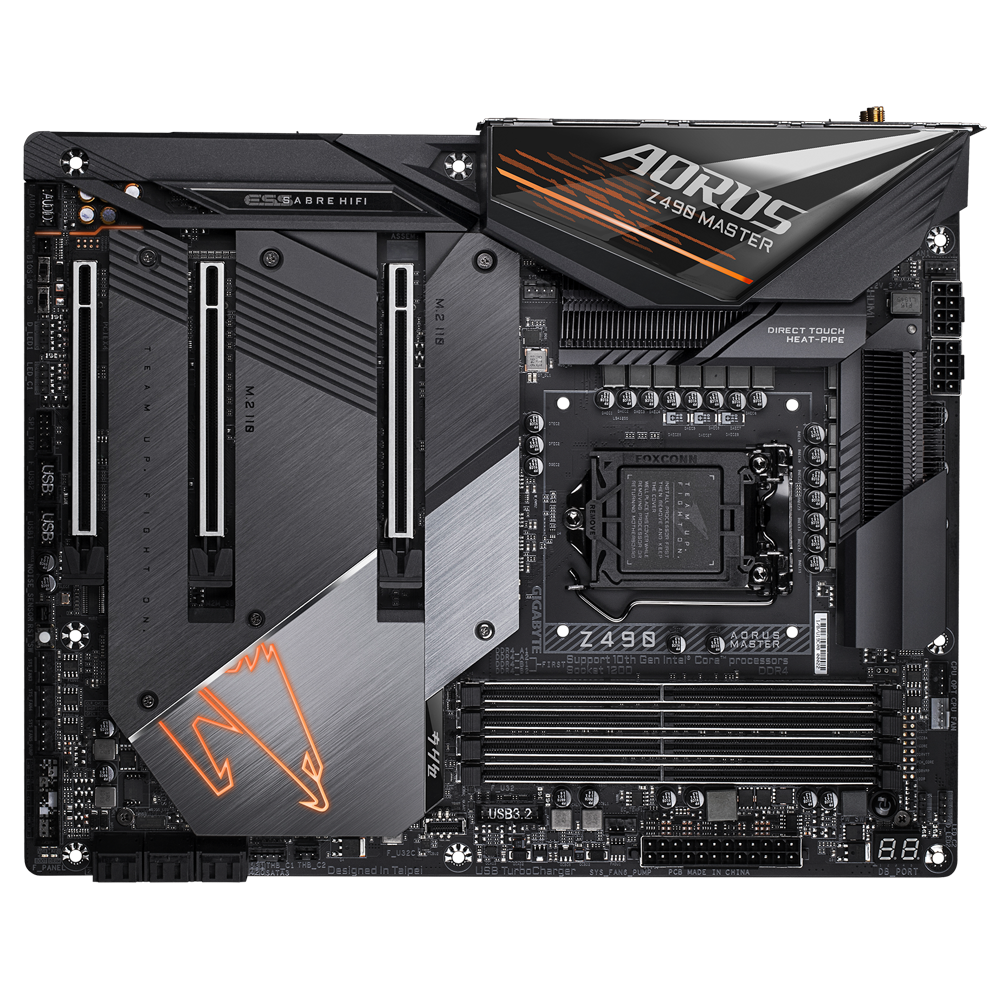

ขายเมนบอร์ด Z490 AORUS MASTER ราคา



CPU Support

1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU



Memory Support

• • Intel^® Core™ i9/i7 processors:
    Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  • Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

Audio

1. Realtek^® ALC1220-VB codec
   * The front panel line out jack supports DSD audio.
2. ESS ES9118EQ DAC chip
3. Support for DTS:X^® Ultra
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out



Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.

Storage

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
4. 6 x SATA 6Gb/s connectors
5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

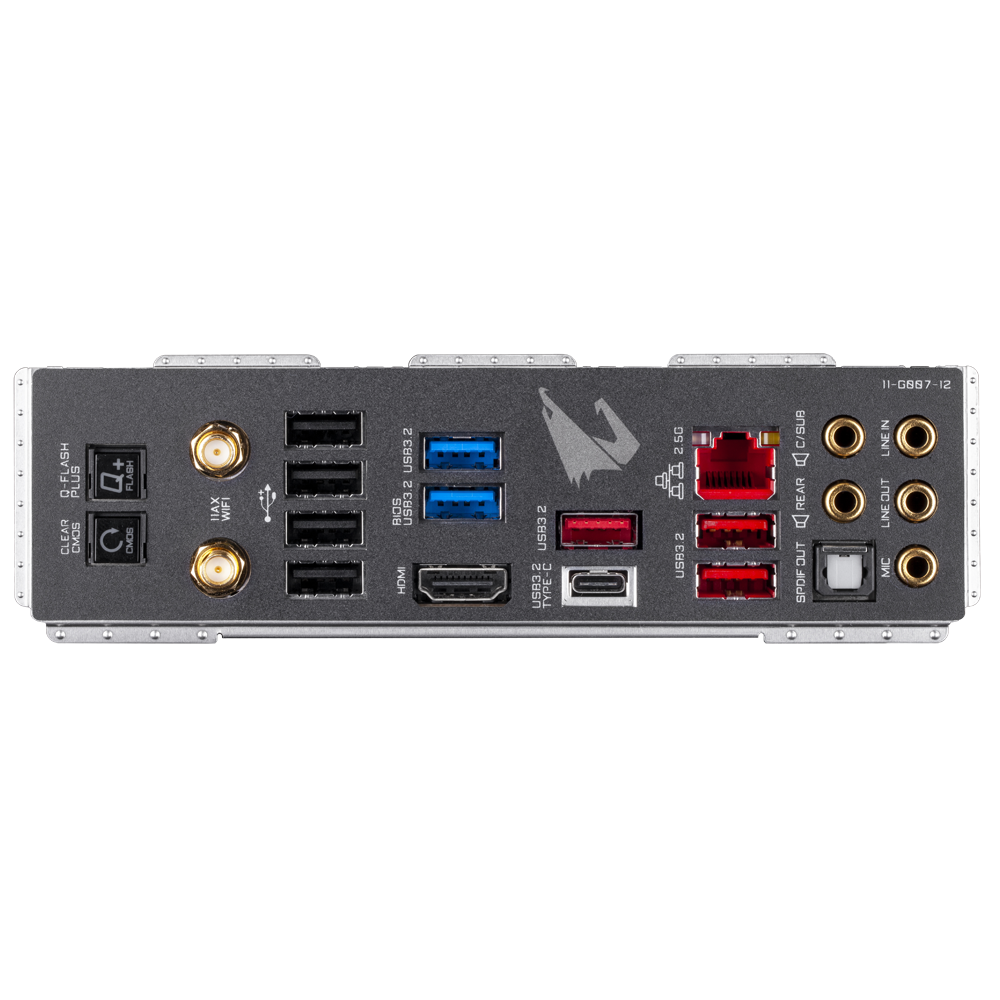

Back Panel Connectors

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x HDMI port
5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
6. 3 x USB 3.2 Gen 2 Type-A ports (red)
7. 2 x USB 3.2 Gen 1 ports
8. 4 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks



Z490 AORUS MASTER ราคา

Advice 12,300 บาท สั่งซื้อ

BananaIT 12,300 บาท สั่งซื้อ

JIB 12,500 บาท สั่งซื้อ

***ราคาอาจจะมีการเปลี่ยนแปลง***
