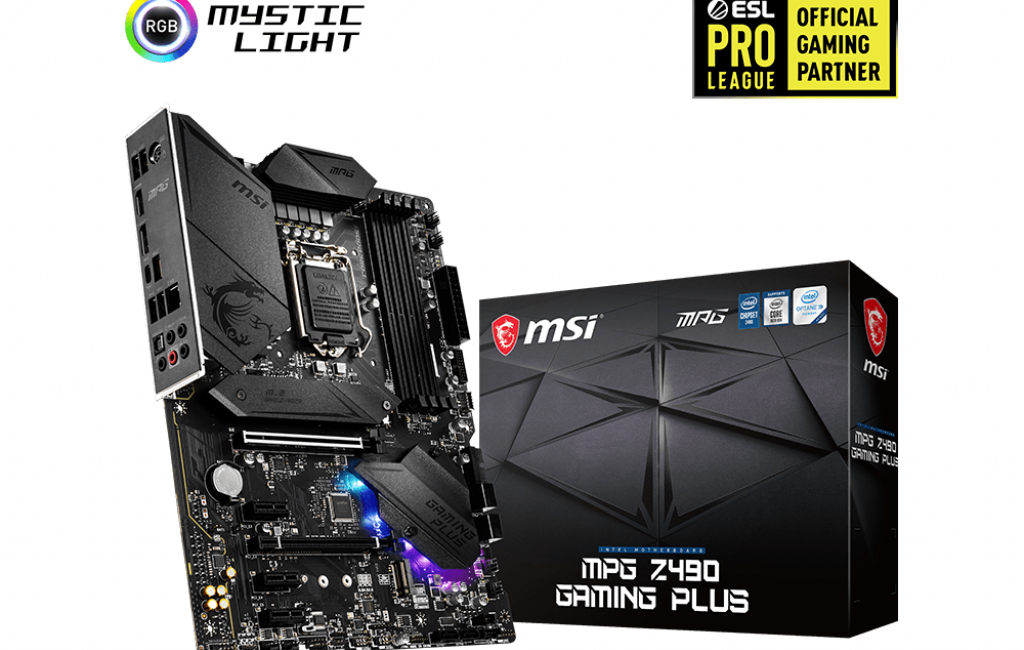

ขายเมนบอร์ด MPG Z490 GAMING PLUS ราคา



CPU Support

Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA1200 socket ^1 2

1. Please go to intel.com for compatibility information.
2. Onboard graphics output are disabled when using the F SKU processors.



Memory Support

• 4 x DDR4 memory slots, support up to 128GB ¹
  • Supports 1R 2133/2666/2933 MHz ¹
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4266+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

Audio

Realtek^® ALC1200-VD1 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output



Expansion Slots

• 1x PCIe 3.0 x16 slot (from CPU)
• 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
• 3x PCIe x1 slots (from PCH)

Storage

Intel^® Z490 Chipset

• 6x SATA 6Gb/s ports ¹
• 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ¹
  • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices ²
  • Intel^® Optane^™ Memory Ready ³
  • Supports Intel^® Smart Response Technology for Intel Core^™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
3. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Back Panel Connectors

1x PS/2 Combo Port
1x USB 3.2 Gen 2 10Gbps (Type-A)
1x LAN Port
5x HD Audio Connectors
2x USB 2.0 Ports
1x HDMI Port
1x DisplayPort
1x USB 3.2 Gen 2 10Gbps (Type-C)
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x Optical S/PDIF OUT



B365M Phantom Gaming 4 ราคา

Advice 5,490 บาท สั่งซื้อ

BananaIT 5,940 บาท สั่งซื้อ

JIB 5,940 บาท สั่งซื้อ

***ราคาอาจจะมีการเปลี่ยนแปลง***
