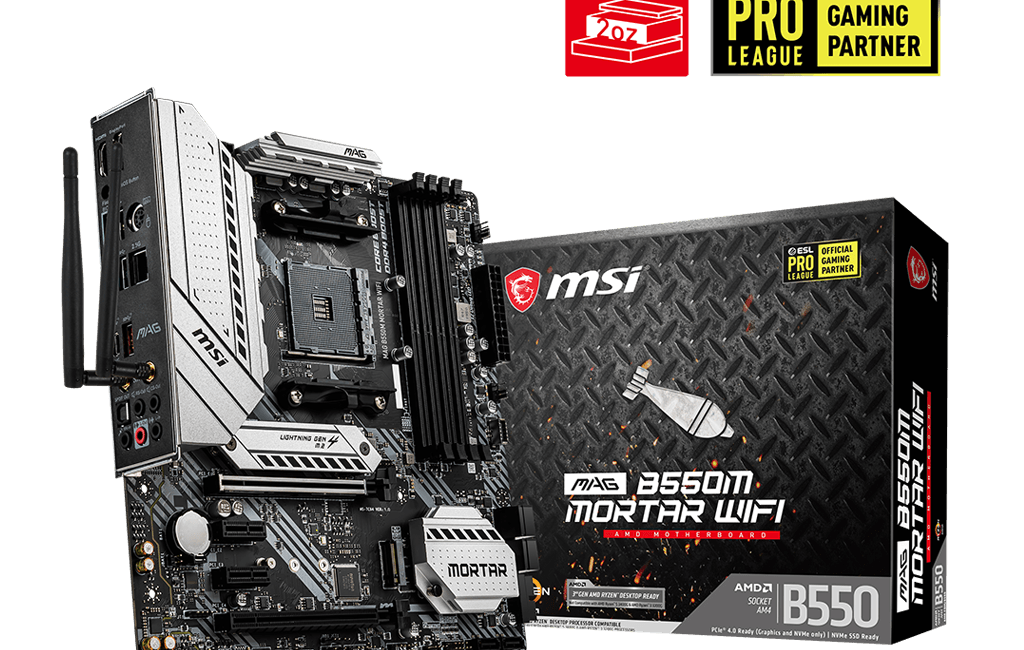

ขายเมนบอร์ด MAG B550M MORTAR WIFI ราคา



CPU Support

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update



Memory Support

• 4x DDR4 memory slots, support up to 128GB ¹
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
    • 1DPC 1R max speed 4400 MHZ
    • 1DPC 2R max speed 3733 MHZ
    • 2DPC 1R max speed 3866 MHZ
    • 2DPC 2R max speed 3466 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

Audio

Realtek^® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output



Expansion Slots

• 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) ¹
• 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode ²
• 2x PCIe 3.0 x1 slots

1. The supported specification depends on installed processor.
2. PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.

Storage

AMD B550 Chipset

• 6x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
  • M2_1 slot (from AMD processor)
    • Supports PCIe 4.0/ 3.0 x4 ¹
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (from AMD B550 chipset)
    • Supports PCIe 3.0×4
    • Supports 2242/ 2260/ 2280 storage devices

1. The supported specification depends on installed processor.

Back Panel Connectors

1 x DisplayPort
1 x PS/2 Combo Port
1 x 2.5G LAN Port
1 x USB 3.2 Gen 2 10Gbps (Type-A)
2 x Wi-Fi / Bluetooth
5 x HD Audio Connectors
1 x HDMI Port
1 x Flash BIOS Button
2 x USB 2.0 port
2 x USB 3.2 Gen 1 5Gbps (Type-A)
1 x USB 3.2 Gen 2 10Gbps (Type-C)
1 x Optical S/PDIF OUT



MAG B550M MORTAR WIFI ราคา

Advice 5,690 บาท สั่งซื้อ

BananaIT 6,050 บาท สั่งซื้อ

JIB 5,690 บาท สั่งซื้อ

***ราคาอาจจะมีการเปลี่ยนแปลง***
