CPU Support
Build in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Memory Support
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Audio
Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Optical S/PDIF out port(s) at back panel
– Audio cover
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H470 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe x1
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® H470 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
5 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

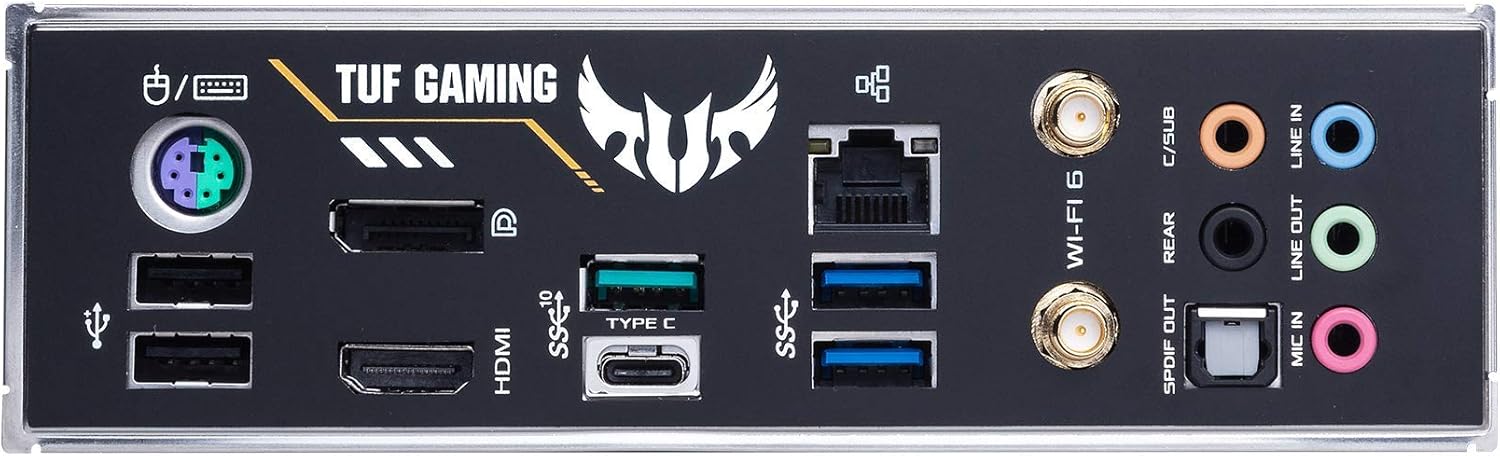

Back Panel Connectors
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

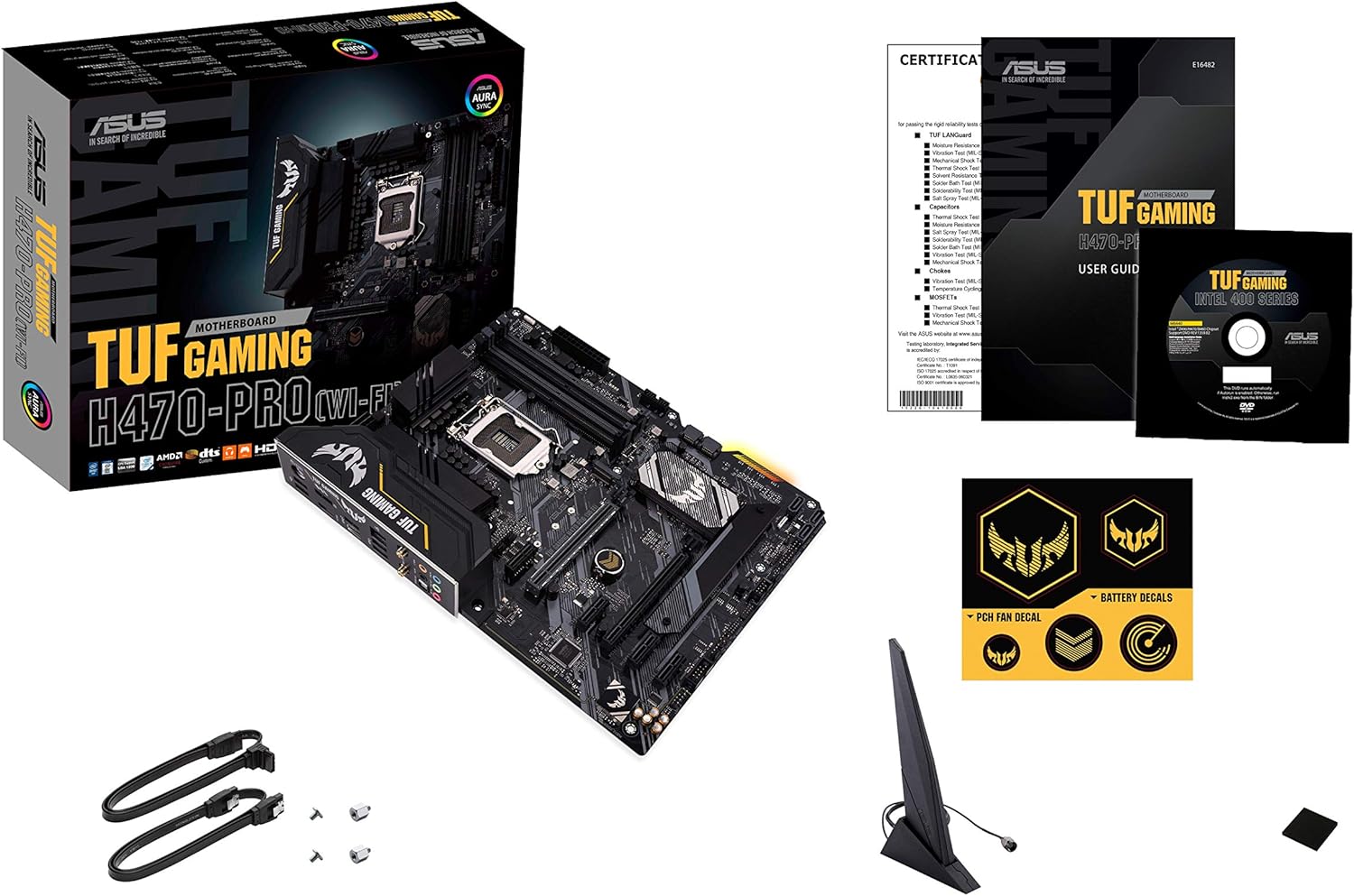

TUF GAMING H470-PRO (WI-FI) ราคา
BananaIT 5,690 บาท สั่งซื้อ
JIB 5,550 บาท สั่งซื้อ
***ราคาอาจจะมีการเปลี่ยนแปลง***
